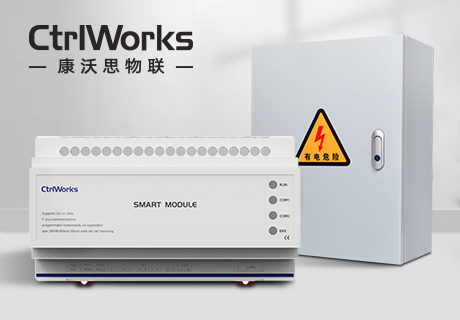

Key Specifications of Multi-Protocol Dimming Modules

• Compatible Light Sources: Fully supports dimming of incandescent, halogen, low-voltage halogen, and LED light sources
• Protection Features:
  • Soft Protection: Scene switching and on/off operations support smooth transitions (extending lamp lifespan)
  • Overcurrent Protection: Automatic shutdown upon exceeding rated power (ensures module safety)
• Key Specifications:
  • Power Consumption: 180mA @ 12V
  • Operating Temperature: -10°C to 50°C

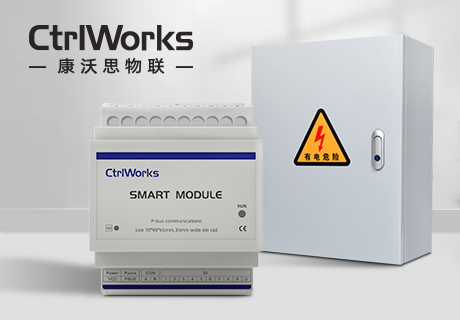

  • Relay Output: Single channel 250VAC/16A (20A model available)
  • COM Port Baud Rate: 1200–115,200 bps

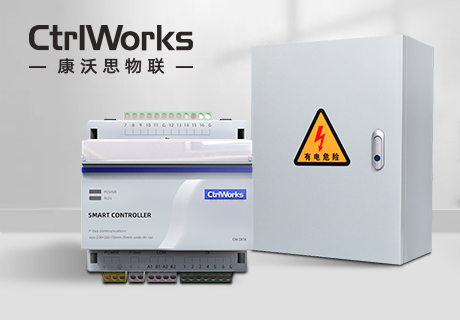

CW Series Intelligent Switch Acquisition Module

The CW series modules are designed for all types of switch sensors and can be connected to infrared motion detection, curtain detection, infrared counters, door magnets, window magnets, smoke sensors, gas alarms and general switch panels. Three models are available: 5-channel (CW.DI05), 16-channel (CW.DI16), and 16-input + 16-output (CW.1616G) to meet the needs of different sized applications.

The modules are independently powered with an operating voltage of 12 V and power consumption of only 180 mA. They are suitable for wide temperature environments from -10°C to 50°C. They support Bacnet/Pyxos fieldbus protocols for seamless integration into building automation and intelligent security systems, and the COM ports have an adjustable transmission speed (1200~115200 bps) to ensure stable and reliable data transmission. Suitable for smart home, industrial automation, security monitoring and other scenarios, providing flexible and efficient solutions for switching and control signals.
